Across many industries, stainless steel sanitary pipe fittings are critical for keeping process systems hygienic. Components such as ferrules, clamps, sanitary valves, and fittings are designed to maintain clean fluid paths. They greatly lower contamination risks and make cleaning easier.

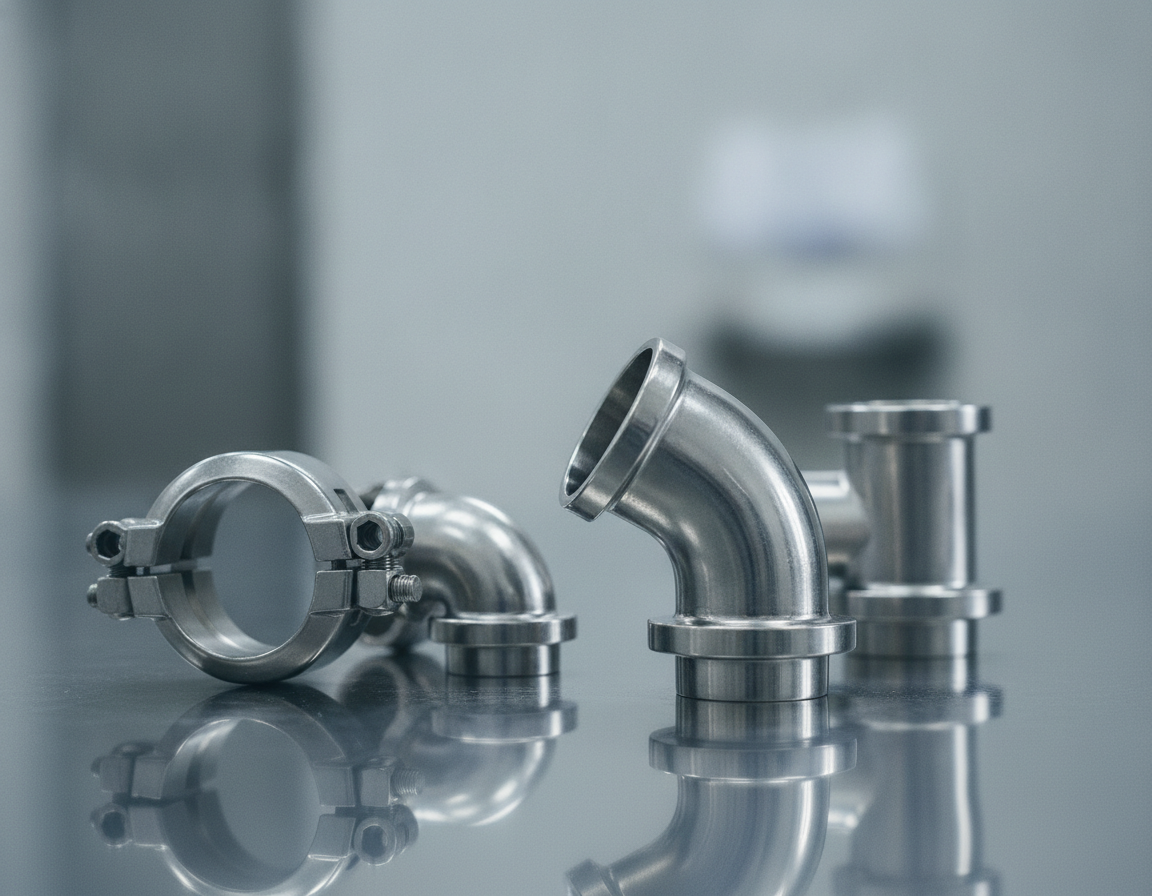

Ss Sanitary Fittings
Selecting the right Hygienic Fittings and Ss Sanitary Fittings influences product safety, uptime, and regulatory compliance. The material grade, surface finish, and compatibility of connections are key factors. They determine the ease with which a system can be validated and maintained.
Reliable suppliers and detailed catalogs are vital for operations teams to select the right parts. Brands such as CSI and distributors like Installation Parts Supply offer useful purchasing information. They include catalog listings, lead times, and customer reviews to guide purchasing decisions for Sanitary Valves And Fittings.
Essential Takeaways
- Stainless Steel Sanitary Pipe Fittings enable contamination control in clean process systems.
- Material grade and surface finish influence cleanability and corrosion resistance.
- Hygienic Fittings compatibility limits downtime during maintenance and upgrades.
- Supplier catalogs and reviews from CSI and Installation Parts Supply support reliable sourcing.
- Choosing the right Sanitary Valves And Fittings helps ensure product quality and regulatory compliance.
Overview Of Sanitary Pipe Fittings And Hygienic Fittings For Clean Systems
Sanitary systems require components designed for safety and efficiency. A sanitary fitting should include smooth surfaces, tight seals, and accessible cleaning points. These features are critical for preventing contamination and supporting clean-in-place and sterilize-in-place routines.
What Sanitary Fittings Are Designed To Do
Sanitary fittings, also known as hygienic fittings, provide crevice-free connections. That design helps prevent bacterial growth and helps maintain product purity during transfer and processing. Their design enables faster cleaning while reducing cross-contamination risk.
Industries That Use Hygienic Fittings
Food processors rely on hygienic fittings to adhere to safety standards and prevent spoilage. Beverage manufacturers use them to preserve flavor and shelf life. Pharmaceutical facilities choose fittings that meet high-level regulatory and validation requirements.
Biotech facilities need reliable sanitary connections for fermentation, cell culture, and bioprocessing. These industries prioritize documentation, repeatable cleaning, and compatible materials.
Why Stainless Steel Works Best For Hygienic Systems
Stainless steel is favored for its corrosion resistance, mechanical strength, and cleanability. Grades like 304 and 316L handle chemicals and high temperatures. They also support smooth finishes, low Ra values, and electropolished surfaces.
Stainless components help minimize bacterial growth and extend service life during aggressive cleaning cycles. Tri Clover Sanitary Fittings and other standardized interfaces improve assembly, inspection, and maintenance in hygienic systems.
Stainless Steel Sanitary Pipe Fittings Explained
In modern food, beverage, and pharmaceutical systems, stainless steel sanitary pipe fittings are critical. The right material, product type, and surface finish are key to reducing contamination risk and making cleaning easier. This section explains common stainless grades, component families, and surface finish options for hygienic performance.
Sanitary Stainless Steel Materials And Grades
Type 304 stainless steel delivers corrosion resistance and mechanical strength, making it suitable for many general processing lines. It is commonly used for tanks, structural supports, and areas where product-contact risk is lower.
Type 316L provides better resistance to chloride pitting and crevice corrosion. Pharmaceutical manufacturers often choose 316L for wetted parts because its low carbon content helps reduce sensitization during welding.
Matching grades across components helps maintain corrosion resistance and prevents galvanic issues when parts are joined. Specifying 304 or 316L at the design stage simplifies the procurement of SS Sanitary Fittings and associated parts.
Common Sanitary Fitting Types And Their Roles
Ferrules are the basic connection points for butt-weld and weld-in assemblies. They are available in 304 or 316L with polished IDs to match process piping.
Two-piece clamps, known as Tri-Clamp or Tri-Clover style, enable quick assembly and disassembly for cleaning. Couplings and sanitary weld fittings ensure smooth lines and weld-ready connections.
Sanitary Hose Fittings and Sanitary Weld Fittings connect flexible transfer lines and permanent piping. Sanitary Valves And Fittings control flow while preserving hygienic, cleanable profiles. Designing a system with compatible SS Sanitary Fittings minimizes downtime and leak risks.
Why Surface Finish Matters For Cleanability
Surface roughness affects how residues adhere. A 32RA internal finish is a common spec that combines cost and cleanability for most food and beverage applications.
Electropolishing further smooths the stainless surface and improves passivity. This treatment minimizes microbial harborage and boosts corrosion resistance in aggressive environments.
Specifying matching finishes across ferrules, clamps, valves, and weld fittings supports hygienic integrity. When parts share matching 32RA or electropolished surfaces, cleaning validation is simpler.
| Component | Typical Material | Typical Finish | Primary Use |
|---|---|---|---|
| Ferrules for welded assemblies | 304 or 316L | 32RA ID and OD finish | Sanitary welded pipe ends |
| Tri-Clamp two-piece clamps | 316L for demanding use | Polished or electropolished finish | Quick-release hygienic joints |
| Weld fittings and couplings | 304 and 316L stainless options | Standard 32RA or electropolished | Permanent connections, elbows, and tees |
| Sanitary flexible-line fittings | 316L commonly used | Electropolished product-contact surfaces | Hose-to-pipe transfer connections |
| Hygienic valves and fittings | 316L commonly used for product-contact areas | Polished internals | Cleanable flow control in process lines |
Triclover Fitting Options And Tri-Clamp Catalog Guidance
Tri Clover Pipe Fittings follow strict dimensional standards that support cross-manufacturer compatibility. DIN 32676 and DIN 11864-3A set ferrule face geometry and clamp interfaces. This ensures sanitary lines remain leak-free and easy to maintain. These standards streamline the selection of Triclover Fittings for food, beverage, and pharmaceutical applications.
When reviewing a Tri-Clamp Fittings Catalog, focus on size range, material grade, pressure ratings, and surface finish. Catalogs typically list two-piece clamps from 0.25″ to 4″, along with single-pin designs and corresponding gaskets. Ferrules are usually shown with length, material, and finish details, with 304 and 316L 32RA options common for improved cleanability.
Key items in catalogs feature clamps, ferrules, and gasket sets, sized in inches or DN. Prices for small two-piece clamps start under ten dollars, while larger clamps are in the low double digits. Each Triclover Fitting listing should show OAL, ID/OD finish, gasket compatibility, and material grade. This helps ensure the correct part is selected when ordering.
High-pressure applications may require double-bolt or heavy-duty two-piece clamps. These clamps feature a 304 stainless body with brass nuts, balancing strength and corrosion resistance. For critical process lines, choose high-pressure clamps by rated clamp force and confirm compatibility with existing Tri Clover Fittings to avoid mismatches.
The choice of material influences both longevity and cleaning performance. 316L ferrules provide better chloride resistance in harsh or chemically aggressive environments. Make sure the Tri-Clamp Fittings Catalog lists ferrule metallurgy, clamp construction, and finish details. This supports the selection of Tri Clover Pipe Fittings based on process conditions and application requirements.
Spec sheets should include clamp size charts, ferrule dimensions, surface finishes, and part numbers to streamline procurement. A well-organized catalog facilitates quick replacement of Triclover Fittings, minimizing downtime. Choose suppliers that publish detailed specifications for each Tri Clover Fitting so interchangeability across brands can be confirmed.
CSI Sanitary Fittings Compatibility And Sanitary Connections
Sanitary connections are important for linking pipes, valves, and equipment in clean systems. The correct joint type is important for maintaining cleanability, efficiency, and reliability. This section will explain common connection styles, brand interchangeability, and customer feedback on supplier reliability.
There are various connection types, including clamp connections like Tri-Clamp, butt-weld and socket-weld fittings, threaded links, and sanitary hose fittings. Each style has different trade-offs for assembly speed, cleanability, and leak risk.
Clamp connections are popular because they assemble quickly and can be disassembled easily for cleaning. Welded joints provide the smoothest internal profile for CIP and SIP routines. Threaded fittings are generally more suitable for low-risk or utility applications where product contact is not critical. Sanitary hose fittings require matched ferrules and a secure Sanitary Coupling to prevent leaks.
Brand compatibility matters when components from multiple suppliers are mixed. CSI Sanitary Fittings and Csi Fittings use common standards like Tri-Clamp and DIN, making them generally interchangeable with other manufacturers. Steel & O’Brien provides spec sheets that confirm compatibility with major Tri-Clamp systems when standards are followed.
To ensure compatibility, match the nominal size, sealing face, material grade, and surface finish. Check datasheets for standards such as DIN 32676 and DIN 11864. Mismatched finishes or grades can cause corrosion, leakage, or product-residue traps.
Customer feedback offers practical insights into supplier reliability. Reviews for CSI mention consistent part quality and quick shipping, with some buyers experiencing next-day delivery on stock items. Other customers highlight responsive communication after order questions or technical inquiries.
When comparing suppliers, review lead times, documented quality, return policies, and after-sale support. Reliable shipping and clear spec sheets limit downtime and avoid costly returns when purchasing Sanitary Connections, CSI Sanitary Fittings, or components from Steel & O’Brien.
| Connection Type | Best Use | Hygienic Cleanability | Cross-Brand Notes |
|---|---|---|---|
| Clamp-style sanitary connection | Lines requiring fast access for cleaning | High; gasketed seal easy to clean | High when size and sealing face match; CSI fittings fit most brands |
| Butt-weld and socket-weld fittings | Fixed sanitary piping where cleanability is critical | Very high when welded and polished correctly | Standard dimensions support cross-brand ferrule and coupling compatibility |
| Threaded | Non-product-contact lines, utilities | Moderate; threads can trap residue | Less common for sanitary product lines; check material and finish |
| Hose with Ferrule | Flexible runs and transfer lines | Good when ferrule, gasket, and clamp match | Requires matching ferrule profile and Sanitary Coupling for leak-free fit |
Selection Guide For Sanitary Pipe Fittings Stainless And SS Sanitary Fittings
Selecting the correct sanitary components requires a focused review of size, material, finish, and pressure. This guide supports you match size, material, and finish to your process needs. Use the checks below to reduce downtime and support hygienic performance.
Begin with size and designation. Confirm DN and TC markings, then verify DN-to-TC inch equivalents before ordering. Common catalog mappings include DN20, DN25, DN32, DN40, DN50, DN65, and DN100 matched to 0.25″–4″ Tri-Clamp sizes. Check mating faces, gasket grooves, and flange profiles to confirm compatibility.
Material selection is a critical part of sanitary fitting specification. For many food and beverage lines, 304 stainless meets strength, cleanability, and cost requirements. For pharmaceutical, chloride-exposed, or aggressive-cleaning processes, choose 316L for better corrosion resistance and weldability. Most suppliers list 316L ferrules and fittings as standard options for harsh environments.
Surface finish and gasket choice affect cleanability and seal life. Specify target finishes such as 32RA or electropolished surfaces. Match gasket materials like EPDM, PTFE, or silicone to temperature, chemical exposure, and product contact requirements. Confirm gasket cross-section, clamp type, and clamp pressure to help prevent leaks.
Review process pressure and clamp type. Standard clamp clamps handle everyday sanitary services. High-pressure service may require reinforced clamps, double-bolt designs, or specialized nuts and hardware. Review catalog pressure ratings and choose clamps rated above operating pressure to provide a safety margin.
Copper Tri Clamp Fittings may be considered for specialized or niche applications. Copper tri clamp fittings can provide conductivity and antimicrobial benefits in certain systems. Before pairing copper with stainless lines, validate compatibility with cleaning agents, product chemistry, and dissimilar-metal corrosion risk.
Final checks reduce costs. Compare catalog part numbers against DN TC inch equivalents, confirm material grade markings, and request mill test reports when needed. Keep records of gasket type, finish specification, and clamp pressure to streamline spare parts ordering and maintenance.
Installation, Maintenance, And Best Practices For Sanitary Coupling And Sanitary Weld Fittings
Keeping sanitary connections clean and reliable is critical in hygienic systems. Follow defined assembly steps for tri-clamp assemblies and welded joints to reduce leaks and contamination risk. Keeping detailed records of materials, finishes, and maintenance is essential for traceability and audits.
Best-practice assembly steps
Begin by thoroughly cleaning ferrule faces and checking gaskets for any defects. Place the gasket between the ferrule faces and make sure the sealing surfaces are properly aligned. Next, fit the clamp and tighten by hand, then apply the specified torque with a calibrated wrench. For high-pressure applications, use double-bolt clamps with brass nuts and adhere to the recommended torque to prevent over-compression.
Sanitary Weld Fittings best practices
When working with weld joints, prepare the tube ends to the specified Ra finish before welding. Use inert gas purging to reduce oxidation on 316L stainless steel. After welding, inspect weld contour, internal profile, and surface smoothness. If necessary, rework any rough spots by grinding and electropolishing to restore the low roughness and maintain hygiene.
Regular sanitary maintenance
Implement CIP and SIP cycles as required by the process. Inspect ferrule faces, clamps, and gaskets after thermal cycles, production runs, and scheduled cleaning. Replace gaskets when they show hardening, extrusion, cuts, or permanent deformation. After each maintenance activity, verify clamp torque, gasket seating, and alignment.
Troubleshooting frequent sanitary fitting issues
When leaks appear, first check clamp seating, gasket condition, and ferrule alignment. Misaligned clamps can create uneven compression and leaks. To fix, loosen, realign, and retighten to the specified torque. For gasket extrusion or failure, ensure the correct durometer and material are used, and confirm the groove dimensions match the ferrule specifications.
Addressing surface damage
Surface damage such as scratches, pits, or crevice corrosion can trap microorganisms and residues. Minor scratches can be polished out and then electropolished to restore the Ra levels. Components should be replaced if pitting penetrates the surface or if polishing would remove too much material.
Documentation and maintenance records
Keep detailed records of material grades, surface finishes, gasket types, clamp models, and service dates. Maintain calibration records for torque tools and welding equipment. Accurate records support regulatory compliance and expedite troubleshooting efforts.
| Maintenance Task | Timing | Primary Action | Notes |
|---|---|---|---|
| Clamp torque verification | After assembly and monthly | Check with calibrated torque wrench | Follow manufacturer torque tables by Sanitary Coupling size |
| Gasket inspection/replacement | At scheduled intervals or whenever defects appear | Check for cuts, hardening, swelling, or extrusion | Replace only with compatible gasket material |
| Surface finish check | After weld work and during quarterly checks | Measure Ra, inspect visually | Restore finish when roughness exceeds the process specification |
| Weld profile inspection | After installation and during annual review | Inspect weld shape, smoothness, and defects | Repair and re-polish Sanitary Weld Fittings as needed |
| CIP and SIP validation | Each process cycle | Record process parameters during each cycle | Document results for regulatory traceability |
Where To Buy Sanitary Fittings: Catalogs, CSI Fittings, And Installation Parts Supply
A detailed catalog review is a useful first step. Look for a Sanitary Fittings Catalog that includes material grade, finish, and pressure rating. It should also mention standards like DIN 32676 or DIN 11864-3A. Confirm item codes and stock status before ordering to avoid delays.
When reviewing a Tri-Clamp Fittings Catalog, compare clamp type, gasket compatibility, dimensional specifications, and material grade. Check if ferrules and fittings have surface finishes like 32RA or electropolished. A detailed catalog makes gasket and clamp matching easier during assembly and maintenance.
Check Csi Fittings performance by reading independent reviews and supplier lead times. Many buyers report next-day shipping for common parts and responsive customer service on quality questions. Confirm return terms and inspection requirements for precision parts used in tight-tolerance projects.
Use the following example listing to estimate market pricing and common stocking sizes. Prices reflect typical catalog entries and help set realistic budgets for procurement.
| Catalog Item | Nominal Size | Grade | Finish | Catalog Price USD |
|---|---|---|---|---|
| Two-piece single-pin clamp | 0.25″ to 0.75″ | 304 stainless | Standard catalog finish | Approx. $3.91 |
| Single-pin two-piece clamp | 1″ | 304 stainless | Standard catalog finish | $4.91 |
| Two-piece single-pin sanitary clamp | 2 inch | 304 stainless | Standard | Approx. $5.99 |
| Two-piece single-pin sanitary clamp | Two-and-a-half-inch size | Type 304 stainless steel | Standard catalog finish | 6.93 USD |
| Two-piece single-pin clamp | 3 inch | 304 stainless | Standard catalog finish | $7.54 |
| Two-piece single-pin sanitary clamp | Four-inch size | Type 304 stainless steel | Standard finish | $9.16 |
| Tri-Clamp ferrule | 2″ size, 1.125″ overall length | 316L | 32RA internal and external finish | $4.24 |
| Tri-Clamp ferrule | 2 inch with 1.125 inch OAL | 304 stainless | 32RA ID/OD | 4.06 USD |
| Ferrule TC | Three-inch size | Type 316L stainless steel | 32RA ID/OD | 6.15 USD |
| High-pressure sanitary clamp | One-and-a-half-inch size | 316 stainless | Polished sanitary finish | Approx. $12.93 |
| High-pressure sanitary clamp | 2″ | Type 316 stainless steel | Polished finish | $14.62 |
| Double-bolt high-pressure clamp | 3″ | 316 stainless | Polished sanitary finish | $20.26 |
Installation Parts Supply is a U.S.-based source for sanitary valves, ferrules, and clamps. Use their online listings to check availability, finishes, and exact pricing for specific Tri-Clamp Fittings Catalog items. Review product pages to cross-check pressure ratings and gasket materials before purchase.
When sourcing parts, prioritize catalogs that clearly separate 304 from 316L, state surface finish, and cite applicable standards. A targeted Sanitary Fittings Catalog search can streamline procurement and reduce returns on critical process components.
Conclusion
Stainless Steel Sanitary Pipe Fittings are essential for maintaining cleanliness in food, beverage, pharmaceutical, biotech, and other hygienic industries. The choice between 304 and 316L materials, along with surface finishes like 32RA or electropolishing, improves cleanability. These choices can significantly reduce contamination risk. Ensuring Tri Clover Fittings and related parts meet standards such as DIN 32676 is important for tight Sanitary Connections and easier interchangeability.
When choosing fittings, evaluate material grade, surface finish, connection type, and pressure needs. Connection choices may include Tri-Clamp, weld, hose, or threaded fittings depending on pressure, product contact, cleaning requirements, and regulations. Use high-pressure clamps where process pressure or safety margins require them. Consistency in gaskets, clamps, and ferrules prevents leaks and simplifies maintenance. Proper installation and regular cleaning extend fitting life and support compliance with hygiene standards.
Catalogs show competitive pricing for two-piece clamps, ferrules, and high-pressure options. This helps balance cost, reliability, and availability in procurement decisions. When looking for where to buy sanitary fittings, prioritize reputable U.S. suppliers. They should list product specifications, finishes, and standards to ensure compatibility with CSI and other branded fittings.
Following these guidelines helps streamline system design, sourcing, and maintenance. Clear specifications, consistent materials, and trusted sources limit downtime. That helps protect product quality in hygienic processing environments.
