Above 65% of recent broadband deployments in metropolitan U.S. projects now require fiber-to-the-home. This accelerated move toward full-fiber networks shows the urgent need for reliable production equipment.
Compact Fiber Unit
Fiber Coloring Machine
Fiber Draw Tower
Shanghai Weiye Optic Fiber Communication Equipment Co (www.weiye-ofc.com) supplies automated FTTH cable production line systems for the United States market. Their turnkey FTTH Cable Production Line for High-Speed Fiber Optics combines machines and control systems. It produces drop cables, indoor/outdoor cables, and high-density units for telecom, data centers, and LANs.
This advanced FTTH cable making machinery provides measurable business value. It provides higher throughput and consistent optical performance with low attenuation. It also aligns with IEC 60794 and ITU-T G.652D / G.657 standards. Customers gain reduced labor costs and material waste through automation. Full delivery services include installation and operator training.
This FTTH cable manufacturing line package contains fiber draw tower integration, a fiber secondary coating line, as well as a fiber coloring machine. The line additionally adds SZ stranding line, fiber ribbon line, compact fiber unit assembly, cable sheathing line, armoring modules, as well as testing stations. Control as well as power specs commonly rely on Siemens PLC with HMI, operating at 380 V AC ±10% as well as modular power consumption up to roughly 55 kW depending on configuration.
Shanghai Weiye’s customer support model incorporates on-site commissioning by experienced engineers, remote monitoring, together with rapid troubleshooting. It also contains lifetime technical support and operator training. Clients are typically required to coordinate engineer logistics as part of standard supplier practice when ordering from FTTH cable machine suppliers.
Main Takeaways
- FTTH production line systems meet growing U.S. demand for fiber-to-the-home deployments.
- Complete turnkey systems from Shanghai Weiye combine automation, standards compliance, and operator training.
- Modular setups use Siemens PLC + HMI and operate near 380 V AC with up to ~55 kW power profiles.
- Combined production modules cover drawing, coating, coloring, stranding, ribbon, sheathing, armoring, and testing.
- Advanced FTTH cable making machinery reduces labor, waste, and improves optical consistency.
- Service coverage includes on-site commissioning, remote diagnostics, and lifetime technical assistance.
Understanding FTTH Cable Line Technology
The fiber optic cable production process for FTTH demands precise control at every stage. Producers employ integrated lines that combine drawing, coating, stranding, together with sheathing. That method boosts yield together with speeds up market entry. The line meets the needs of both residential together with enterprise deployments in the United States.
Below, we outline the core components together with technologies driving modern manufacturing. Each module must operate featuring precise timing and reliable feedback. This choice of equipment influences product quality, cost, and flexibility for various cable designs.
Core Components In Modern Fiber Optic Cable Manufacturing
Secondary coating lines apply dual-layer coatings, often 250 µm, using high-speed UV curing. Tight buffering and extrusion systems produce 600–900 µm jackets for indoor and drop cables.

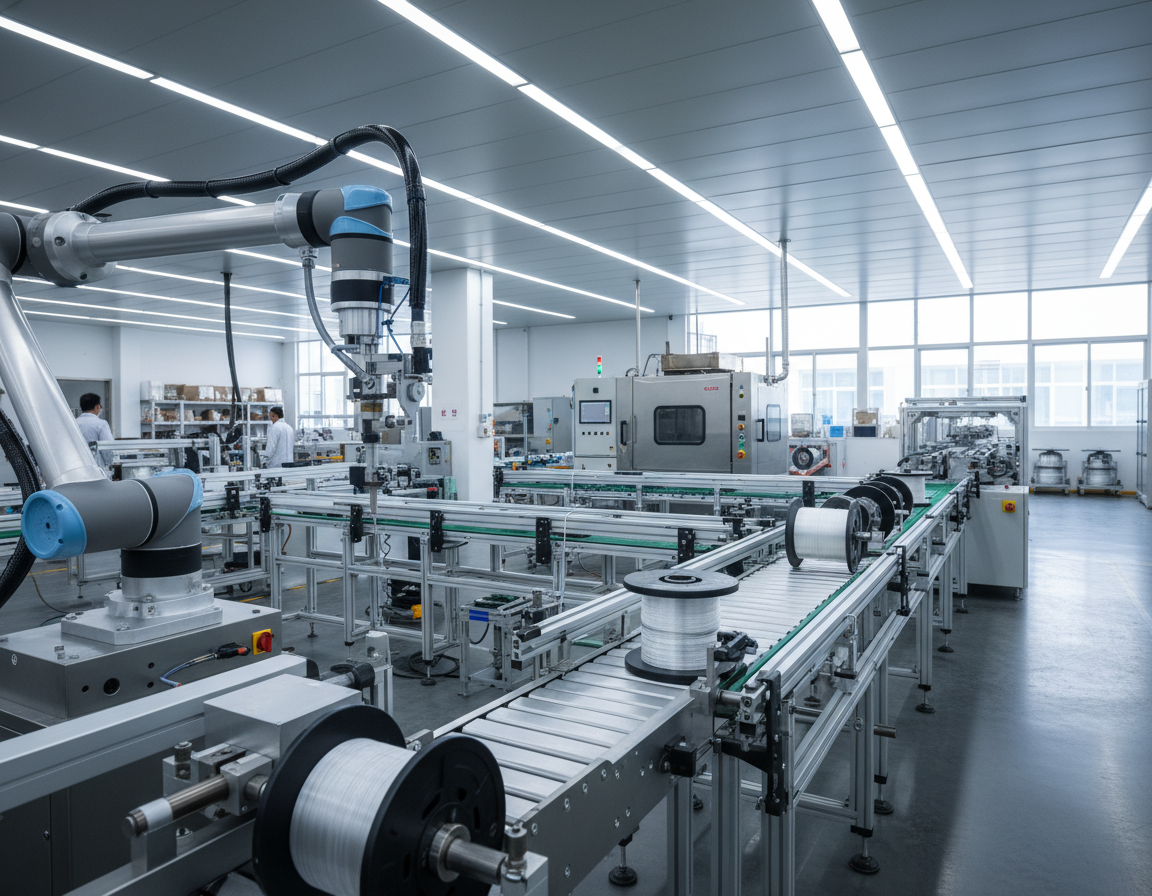

SZ stranding lines employ servo-controlled pay-off and take-up units to handle up to 24 fibers with accurate lay length. Fiber coloring machines employ multi-channel UV curing to mark fibers to industry color codes.
Sheathing together with extrusion stations form PE, PVC, or LSZH jackets. Armoring units add steel tape or wire for outdoor protection. Cooling troughs and UV dryers stabilize profiles before testing.
Evolution From Traditional To Advanced Production Systems
Early plants used manual as well as semi-automatic modules. Lines were separate, using hand transfers and basic controls. Modern facilities now rely on PLC-controlled, synchronized systems using touchscreen HMIs.
Remote diagnostics and modular turnkey setups enable rapid changeover between simplex, duplex, ribbon, and armored formats. This transition supports automated fiber optic cable production and reduces labor dependence.
Key Technologies Powering Industry Innovation
High-precision tension control, based on servo pay-off as well as take-up, keeps geometry stable during high-speed runs. Multi-zone temperature control using Omron PID and precision heaters supports consistent extrusion quality.
High-speed UV curing and water cooling improve profile stabilization while reducing energy use. Integrated inline testers measure attenuation, geometry, tensile strength, crush resistance, and aging data.
| Process | Typical Module | Key Benefit |
|---|---|---|
| Fiber draw process | Draw tower with closed-loop tension feedback | Stable core diameter and reduced attenuation |
| Fiber secondary coating | Dual-layer UV coaters | Uniform 250 µm coating for durability |
| Coloring | Fiber coloring unit with multiple channels | Accurate identification for splicing and installation |
| SZ stranding | SZ line with servo control for up to 24 fibers | Consistent lay length for ribbon and loose tube designs |
| Jacket extrusion & sheathing | Efficient extruders with multi-zone heaters | PE/PVC/LSZH jackets with tight dimensional control |
| Protection armoring | Armoring units for steel tape or wire | Stronger mechanical protection for outdoor applications |
| Profile cooling & curing | Cooling troughs plus UV dryers | Fast profile stabilization and reduced defects |
| Inline testing | Inline geometry and attenuation measurement | Real-time quality control and compliance reporting |
Compliance with IEC 60794 and ITU-T G.652D/G.657 variants is standard. Manufacturers typically certify to ISO 9001, CE, and RoHS. These credentials enable diverse applications, from FTTH drop cable production to armored outdoor runs and data center high-density solutions.
Choosing cutting-edge fiber optic production equipment and modern manufacturing equipment helps firms meet tight tolerances. Such equipment selection enables efficient automated fiber optic cable production and positions companies to deliver on scale and quality.
Key Equipment For Fiber Secondary Coating Line Operations
The secondary coating stage is critical, giving drawn optical fiber its final diameter and mechanical strength. It prepares the fiber for stranding and cabling. A well-tuned fiber secondary coating line controls coating thickness, adhesion, and surface quality. This protects the glass during handling.
Producers aiming for high-yield, high-speed fiber optic cable line output must match material, tension, as well as curing systems to process requirements.
High-speed secondary coating processes rely on synchronized pay-off, coating heads, together with UV ovens. Modern systems achieve high production rates while minimizing excess loss. Precise tension control at pay-off and winder stages prevents microbends together with supports consistent coating thickness across long runs.
Single and dual layer coating applications meet different market needs. Single-layer setups provide basic mechanical protection and a simple optical fiber cable production machine footprint. Dual-layer lines combine a harder inner layer with a softer outer layer to improve microbend resistance and stripability. That helps when fibers are prepared for connectorization.
Temperature control and curing systems are critical to final fiber performance. Multi-zone heaters and Omron PID controllers guide screw/barrel extruders to stable melt flow for LSZH or PVC compounds. UV curing ovens and water trough cooling stabilize the coating profile and reduce variation in excess loss; targets for high-quality single-mode fiber often aim for ≤0.2 dB/km at 1550 nm after extrusion.
Key components from trusted suppliers improve uptime and precision in an optical fiber cable line output machine. Extruders such as 50×25 models, screws and barrels from Jinhu, as well as bearings from NSK are common. Motors from Dongguan Motor, inverters by Shenzhen Inovance, and PLC/HMI platforms from Siemens or Omron deliver robust control together with monitoring for continuous runs.
Operational parameters support preventive maintenance and process tuning. Typical pay-off tension ranges from 0.4 to 1.5 N for fiber reels, while radiation and curing speeds are adjusted to material type and coating thickness. A preventive maintenance cycle around six months keeps secondary coating processes stable and supports reliable high-speed fiber optic cable production.
Fiber Draw Tower And Optical Preform Handling
The fiber draw tower is the core of optical fiber drawing. It softens a glass preform in a multi-zone furnace. Then, it pulls a continuous strand with precise diameter control. This step sets the refractive-index profile and attenuation targets for downstream processes.
Process control on the tower uses real-time diameter feedback and tension management. This prevents microbends. Cooling zones and closed-loop systems keep geometry stable during the optical fiber cable production process. Modern towers log metrics for traceability and rapid troubleshooting.
Output output quality supports single-mode fibers such as ITU-T G.652D as well as bend-insensitive types like G.657A1/A2 for FTTH networks. Draws routinely meet stringent loss figures. Excess loss after coating is kept at or below 0.2 dB/km for high-performance single-mode fiber.
Integration with secondary coating lines requires careful pay-off control. A synchronized handoff preserves alignment and tension as the fiber enters coating, coloring, or ribbon count stations. This link ensures the optical fiber drawing step feeds smoothly into cable assembly.
Equipment vendors such as Shanghai Weiye offer turnkey options. These include testing stations for attenuation, tensile strength, and geometric tolerances. Such capabilities help manufacturers scale toward high-speed fiber optic cable production while maintaining ISO-level quality checks.
| Key Feature | Function | Typical Goal |
|---|---|---|
| Multi-zone heating furnace | Even preform heating for stable glass viscosity | Stable draw speed and refractive profile |
| Real-time diameter control | Control core/cladding geometry while reducing attenuation | Tolerance ±0.5 μm |
| Managed tension and cooling | Protect fiber strength while preventing microbends | Defined tension by fiber type |
| Automatic pay-off integration | Secure handoff to secondary coating and coloring | Synced feed rates for zero-slip transfer |
| On-line test stations | Verify loss, strength, and geometry | ≤0.2 dB/km loss after coating for single-mode |
Advanced SZ Stranding Technology For Cable Assembly
The SZ stranding method creates alternating-direction lays that cut axial stiffness and boost flexibility. That makes it ideal for drop cables, building drop assemblies, together with any application that needs a flexible core. Manufacturers moving toward automated fiber optic cable manufacturing rely on SZ approaches to meet tight bend as well as axial tolerance specs.
Precision in the stranding stage protects optical performance. Advanced precision stranding equipment relies on servo-driven carriers, rotors, together with modular pay-off racks that accept up to 24 fibers. These systems deliver precise lay-length control together with allow quick reconfiguration for different cable types.
Automated tension control systems keep fibers within safe limits from pay-off to take-up. Servo pay-offs, capstans, and haul-off units maintain constant linear speed and target tensions. Typical fiber pay-off tension ranges from 0.4 to 1.5 N while reinforcement pay-offs run between 5 and 20 N.
Integration with a downstream fiber cable sheathing line streamlines production and reduces handling. Extrusion of PE, PVC, or LSZH jackets at 60–150 m/min syncs with stranding through a Siemens PLC. Cooling troughs and UV dryers stabilize the jacket profile right after extrusion to prevent ovality and reduce mechanical stress.
Optional reinforcement and armoring modules add strength without compromising flexibility. Reinforcement pay-off racks accept steel wires or FRP rods. Armoring units wrap steel tape or wire using adjustable tension to meet specific mechanical ratings.
Built-in consistency control prevents defects before cables leave the line. In-line geometry checks, fiber strain monitors, as well as optical attenuation measurement detect excess loss or mechanical strain caused by stranding or sheathing. These checks support continuous automated fiber optic cable manufacturing workflows and cut rework.
The combination of a robust sz stranding line, high-end precision stranding equipment, and a synchronized fiber cable sheathing line provides a scalable solution for manufacturers. That setup raises throughput while protecting optical integrity and mechanical performance in finished cables.
Fiber Coloring And Identification System Technology
Coloring and identification are critical in fiber optic cable production. Accurate color application minimizes splicing errors and accelerates field work. Modern equipment combines fast coloring with inline inspection, ensuring high throughput and low defect rates.
Today’s high-speed coloring technology supports multiple channels and quick curing. Machines can operate 8 to 12 color channels simultaneously, aligning with secondary coating lines. UV curing at speeds over 1500 m/min ensures color and adhesion stability for both ribbon and counted fibers.
The following sections discuss standards and coding prevalent in telecom networks.
Color coding adheres to international telecom standards for 12-color cycles and ribbon schemes. That consistency aids technicians in installation and troubleshooting. Consistent coding significantly reduces field faults and accelerates network deployment.
Quality control integrates advanced fiber identification systems into production lines. In-line cameras, spectrometers, and sensors detect color discrepancies, poor saturation, and coating flaws. The PLC/HMI interface alerts to issues and can pause the line for correction, safeguarding downstream processes.
Machine specifications are vital for uninterrupted runs and material compatibility. Leading equipment accepts UV-curable pigments and inks, compatible with common coatings and extrusion steps. Pay-off reels accommodating 25 km or 50 km spools ensure continuous operation on high-volume lines.
Supplier support is essential for US manufacturers adopting these technologies. Shanghai Weiye and other established vendors offer customizable channels, remote diagnostics, and onsite training. This support reduces ramp-up time and enhances the reliability of fiber optic cable production equipment.
Specialized Solutions For Fiber In Metal Tube Production
Metal tube together with metal-armored cable assemblies provide robust protection for fiber lines. They are ideal for direct-buried as well as industrial applications. The controlled routing of coated fibers into metal tubes prevents microbends, ensuring optical performance remains within specifications.
Processes depend on precision filling and centering units. These modules, in conjunction with fiber optic cable manufacturing equipment, ensure concentric placement and controlled tension during insertion.
Armoring steps involve the use of steel tape or wire units with adjustable tension together with wrapping geometry. That approach benefits armored fiber cable manufacturing by preventing compression of fiber elements. It additionally keeps reinforcement wires at typical diameters of ø0.4–ø1.0 mm.
Coupling armoring with downstream sheathing and extrusion lines results in a finished outer jacket made of PE, PVC, or LSZH. An optical fiber cable production machine must handle pay-off reels sized for reinforcement and align with sheathing tolerances.
Quality checks include crush, tensile, and aging tests to confirm the armor does not exceed allowable stress on fibers. Standards-based testing helps ensure long-term reliability in field conditions.
Turnkey solutions from established manufacturers integrate metal tube handling with SZ stranding and sheathing lines. These solutions include operator training and maintenance schedules to sustain throughput on fiber optic cable manufacturing equipment.
Buyers should consider compatibility featuring armored fiber cable manufacturing modules, ease of changeover, as well as service support for field upgrades. These factors reduce downtime as well as protect investment in an optical fiber cable manufacturing machine.
Fiber Ribbon Line And Compact Fiber Unit Production
Modern data networks require efficient assemblies that pack more fibers into less space. Manufacturers employ a fiber ribbon line to create flat ribbon assemblies for rapid splicing. That production method uses parallel processes and precise geometry to meet the needs of MPO trunking and backbone cabling.
Advanced equipment ensures accuracy and speed in production. A fiber ribbone line typically integrates automated alignment, epoxy bonding, precise curing, and shear/stacking modules. In-line attenuation and geometry testing reduce rework, maintaining high yields.
Compact fiber unit line output focuses on tight tolerances and material choice. Extrusion together with buffering create compact fiber unit constructions featuring typical tube diameters from 1.2 to 6.0 mm. Common materials include PBT, PP, and LSZH for durability together with flame performance.
High-density cable solutions aim to enhance rack and tray efficiency in data centers. By increasing fiber count per unit area, these designs shrink cable diameter and simplify routing. They are compatible with MPO trunking and high-count backbone systems.
Production controls as well as speeds are critical for throughput. Current lines can reach up to 800 m/min, depending on configuration. PLC and HMI touch-screen control enable quick parameter changes together with synchronization across multiple lines.
Quality as well as customization remain key differentiators for manufacturers like Shanghai Weiye. Electronic monitoring, customizable ribbon counts, stacking patterns, and turnkey integration with sheathing and testing stations support bespoke high-speed fiber cable manufacturing line requirements.
| Feature | Fiber Ribbon Line | Compact Fiber System | Benefit for Data Centers |
|---|---|---|---|
| Typical operating speed | As high as 800 m/min | Around 600–800 m/min | Higher throughput for large deployments |
| Key Processes | Alignment automation, epoxy bonding, and curing | Extrusion, buffering, tight-tolerance winding | Stable geometry and reduced insertion loss |
| Materials | Specialty tapes and bonding resins | PBT, PP, LSZH jackets and buffers | Long-term reliability and safety compliance |
| Testing | Real-time attenuation and geometry inspection | Tension monitoring and dimensional control | Lower failure rates and faster rollout |
| System integration | Sheathing integration and splice-ready stacking | Modular units supporting high-density cable designs | Simplified MPO trunking and backbone construction |
Optimizing High-Speed Internet Cables Production
Efficient high-speed fiber optic cable line output relies on precise line setup and strict process control. To meet US market demands, manufacturers must adjust pay-off reels, extrusion dies, and tension systems. That helps ensure optimal output for flat, round, simplex, and duplex FTTH profiles.
FTTH Application Cabling Systems
FTTH cabling systems must accommodate various drop cable types while maintaining consistent center heights, like 1000 mm. Production lines for FTTH include 2- and 4-reel pay-off options. They also feature reinforcement pay-off heads for enhanced strength.
Extruder models, such as a 50×25, control jacket speeds between 100 as well as 150 m/min, depending on LSZH or PVC. Extrusion dies for 2.0×3.0 mm profiles guarantee reliable jackets for field installation.
Quality Assurance In The Fiber Pulling Process
Servo-controlled pay-off as well as take-up units regulate fiber tension between 0.4–1.5 N to prevent excess loss. Inline systems conduct fiber pull testing, attenuation checks, mechanical tensile tests, and crush as well as aging cycles. These tests verify performance.
Key control components include Siemens PLCs together with Omron PID controllers. Motors from Dongguan Motor together with inverters from Shenzhen Inovance ensure stable operation and easier maintenance.
Meeting Industry Standards For Optical Fiber Drawing
A well-tuned fiber draw tower produces fibers that meet ITU-T G.652D together with G.657 standards. The goal is to achieve ≤0.2 dB/km excess loss at 1550 nm for high-output quality single-mode fiber.
Choosing the best equipment for FTTH cables involves evaluating speed, customization, warranty, together with local after-sales support. Top FTTH cable production line manufacturers deliver turnkey layouts, remote monitoring, together with operator training. Such support lowers ramp-up time for US customers.
Conclusion
Advanced FTTH cable making machinery integrates various components. These include fiber draw towers, secondary coating, coloring lines, SZ stranding, as well as ribbon units. This line additionally contains sheathing, armoring, together with automated testing for consistent high-output fiber line output. A complete fiber optic cable line output line is designed for FTTH together with data center markets. This system enhances throughput, keeps losses low, as well as maintains tight tolerances.
For U.S. manufacturers and system integrators, partnering with reputable suppliers is key. They should offer turnkey systems with Siemens or Omron-based controls. This includes on-site commissioning, remote diagnostics, and lifetime technical support. Companies like Shanghai Weiye Optic Fiber Communication Equipment Co provide integrated solutions. These systems simplify automated fiber optic cable manufacturing and reduce time to production.
Technically, ensure line configurations adhere to IEC 60794 together with ITU-T G.652D/G.657 standards. Verify tension together with curing settings to meet excess loss targets, such as ≤0.2 dB/km at 1550 nm. Adopt preventive maintenance cycles of roughly six months for reliable 24/7 operation. When planning a new FTTH cable production line, first evaluate required cable types. Collect product drawings as well as standards, request detailed equipment specs and turnkey proposals, and schedule engineer commissioning as well as operator training.
